Trustee supplier of Bitumen 60/70 , 80/100 ,40/50 ,Asphalt and Sulphur Base in UAE , Dubai. TT & LC payments . Al Jabal is the top bitumen exporter in middle east which supply road paving companies around the world. Direct & whatsapp number: +971 523717966

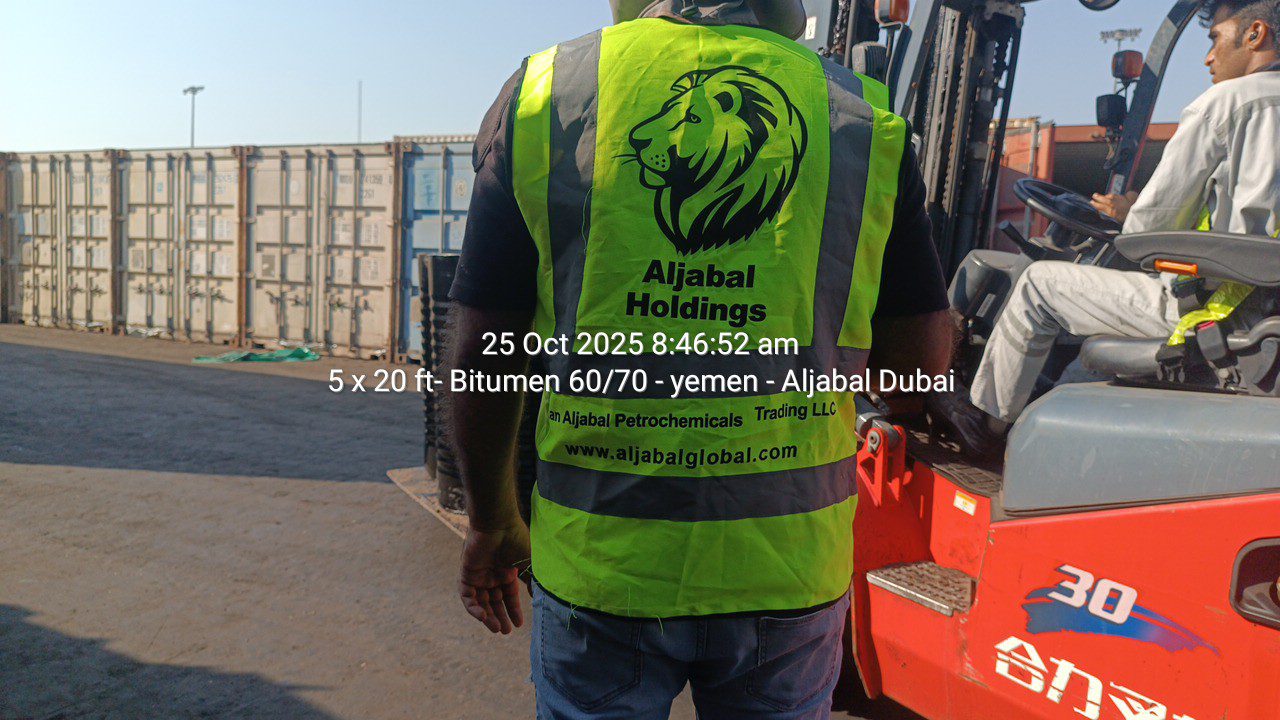

Click Here to see Our Latest Bitumen Shipments
We are able to offer Bitumen with below Grades:
40/50, 60/70, 80/100, 100/200 and 200/300
Packing Drums (180 KG Net / 190 KG Gross Weight ). Also for some markets we produce drums of 150 KG Net Weight As well, specially for Bangladesh Market. Jumbo bags (1 MT Weight ), During the cold season loading in 20 ft containers and during the hot season loading in 40 ft containers.
Definition of bitumen penetration grade 60/70
Penetration grade 60/70 means the penetration value is in the range 60 to 70 at standard test conditions which commonly used as road paving Grade. This is applicable for the production of hot mix asphalt for bases and pavements and for road construction, which supplied by AL JABAL as a top bitumen exporter.
This is produced through aeration on vacuum bottom (the raw material used for making left in vacuum distillation column in oil refineries) in production units. Its penetration grade (the measure of hardness) is between 60 to 70. Bitumen is specified by the penetration and softening point test. Designing is by penetration range only. The penetration grade has a thermoplastic property which causes the material to soften at high temperatures and to harden at lower temperatures. This unique temperature-viscosity relationship is important when determining the performance parameters such as the adhesion, durability and application temperatures.
The Bitumen mode is dependent on temperature. The temperature-vs-stiffness relationship of this is dependent on the type of crude oil and its refining method. Penetration grade 60/70 is semi-hard penetration grade This is used as a paving grade which is suitable for road construction and repair. It is also used for the production of asphalt pavements with the below technical specification. This grade is mainly used in the manufacturing of hot mix asphalt for bases and wearing courses. 60/70 is one of the most used grades and it’s a basic material for all other bituminous products.
Penetration determines the hardness of bitumen by measuring the depth to which a standard loaded the needle will vertically penetrate in 5 seconds, in a sample of maintained at a temperature of 25 degrees Celsius.
Bitumen 60/70 is suitable for road construction and for the asphalt pavements with superior properties. This type used in the manufacture of hot mix asphalt for bases and wearing courses and the main usage of this product is used in the road in mild regions. The bitumen is provided during the presses of oxidation of vacuum bottom in production units. Due to its medium air blowing and penetration, it is used in mild areas.
| Item | Value |
|---|---|
| Plate Thickness (Body) | 0.6 ± 0.02 mm |
| Plate Thickness (Top & Bottom) | 0.6 ± 0.02 mm |
| Height | 100 ± 2 cm |
| Diameter | 50 ± 2 cm |
| Lid Hole Position | Center |
| Lid Hole Diameter | 10 ± 1 cm |
| Body Corrugations | 16 |
| Net Filling Capacity | 182 ± 3 kg |
| Gross Weight | 192 ± 3 kg |
| Drum Tare Weight | 9.5 ± 1 kg (inclusive of lid cap) |
| Color | Glossy Black |
| Workmanship | Drums supplied shall be of good workmanship and sufficiently leak-proof when filled with hot bitumen |
| Material | DIN 1623 ST12 new cold-rolled A-grade steel |
| Property | Test Method | Unit | Specification |
|---|---|---|---|
| Specific Gravity @ 25°C | ASTM D70 | kg/cm³ | 1.01 – 1.06 |
| Penetration @ 25°C | ASTM D5 | mm/10 | 60 – 70 |
| Softening Point | ASTM D36 | °C | 49 – 56 |
| Ductility @ 25°C | ASTM D113 | cm | 100 min |
| Loss on Heating (wt %) | ASTM D6 | wt % | 0.2 max |
| Drop in Penetration after Heating | ASTM D5–D6 | % | 20 max |
| Flash Point | ASTM D92 | °C | 232 min |
| Solubility in Trichloroethylene | ASTM D2042 | wt % | 99 min |
| Spot Test | AASHTO T102 | — | Negative |
Standard: ASTM D946 & D3381
Laboratory Environmental Conditions:
Humidity: 38 %
Temperature: 25 °C
| Analysis | Unit | Limit | Test Method | Result |
|---|---|---|---|---|
| Density @ 25 °C | kg/m³ | — | ASTM D70 | 1.022 |
| Penetration @ 25 °C (100 g, 5 s) | 0.1 mm | 80–100 | ASTM D5 | 95 |
| Softening Point | °C | Min 42 | ASTM D36 | 47 |
| Flash Point (Cleveland Open Cup) | °C | Min 232 | ASTM D92 | 318 |
| Ductility @ 25 °C (5 cm/min) | cm | Min 100 | ASTM D113 | >100 |
| Solubility in Trichloroethylene | wt % | Min 99 | ASTM D2042 | 99.99 |
| Viscosity @ 135 °C | cSt | Min 250 | ASTM D2170 | 276 |
| Viscosity @ 60 °C | Pa·s | 100 ± 20 | ASTM D2171 | 105 |
| Spot Test | — | Negative | AASHTO T102 | Negative |
Thin Film Oven Test (TFOT) – 163 °C, 5 h
| Analysis | Unit | Limit | Test Method | Result |
|---|---|---|---|---|
| Loss on Heating | wt % | Max 0.5 | ASTM D6 | 0.05 |
| Drop in Penetration after TFOT | % | Max 20 | ASTM D6–D5 | 4.5 |
| Ductility @ 25 °C after TFOT (5 cm/min) | cm | Min 75 | ASTM D113 | >75 |
Standard: ASTM D946 & D3381
Laboratory Environmental Conditions:
Humidity: 38 %
Temperature: 25 °C
| Analysis | Unit | Limit | Test Method | Result |
|---|---|---|---|---|
| Density @ 25 °C | kg/m³ | — | ASTM D70 | 1.036 |
| Penetration @ 25 °C (100 g, 5 s) | 0.1 mm | 40–50 | ASTM D5 | 43 |
| Softening Point | °C | Min 49 | ASTM D36 | 51.3 |
| Flash Point (Cleveland Open Cup) | °C | Min 230 | ASTM D92 | 320 |
| Ductility @ 25 °C (5 cm/min) | cm | Min 100 | ASTM D113 | >100 |
| Solubility in Trichloroethylene | wt % | Min 99 | ASTM D2042 | 99.9 |
| Kinematic Viscosity @ 135 °C | cSt | — | ASTM D2170 | 475 |
| Spot Test | — | Negative | AASHTO T102 | Negative |
Thin Film Oven Test (TFOT) – 163 °C, 5 h
| Analysis | Unit | Limit | Test Method | Result |
|---|---|---|---|---|
| Change in Mass | wt % | Max 0.8 | ASTM D1754 | 0.041 |
| Retained Penetration after TFOT | % | Min 55 | ASTM D5 | 61 |
| Ductility @ 25 °C after TFOT (5 cm/min) | cm | Min 50 | ASTM D113 | 84 |
| Characteristic | Unit | MC30 | MC70 | MC250 | MC3000 | Test Method |
|---|---|---|---|---|---|---|
| Kinematic Viscosity at 60°C | cSt | 30–60 | 70–140 | 250–500 | 3000–6000 | ASTM D2170 |
| Flash Point | °C | 38 | 38 | 66 | 66 | ASTM D3143 |
| Water Content (Max) | % Vol | 0.2 | 0.2 | 0.2 | 0.2 | ASTM D95 |
Distillate to 360°C
| Distillation Temperature (°C) | Unit | MC30 | MC70 | MC250 | MC3000 | Test Method |
|---|---|---|---|---|---|---|
| 225 | % Vol | 10 | 10 | 10 | 10 | ASTM D402 |
| 260 | % Vol | 40–70 | 25–65 | 15–55 | 15–75 | ASTM D402 |
| 315 | % Vol | 75–93 | 75–87 | 60–87 | ≥80 | ASTM D402 |
| Residue from distillation to 360 | % Vol | 50 | 55 | 67 | 67 | ASTM D402 |
Tests on Residue Bitumen from Distillation
| Characteristic | Unit | MC30 | MC70 | MC250 | MC3000 | Test Method |
|---|---|---|---|---|---|---|
| Penetration @ 25°C | 0.1 mm | 120–150 | 120–150 | 120–150 | 120–150 | ASTM D5 |
| Ductility at 25°C | cm | 100 | 100 | 100 | 100 | ASTM D113 |
| Solubility in TCE | % wt | 99 | 99 | 99 | 99 | ASTM D2040 |
| Characteristic | Unit | RC30 | RC70 | RC250 | RC3000 | Test Method |
|---|---|---|---|---|---|---|
| Kinematic Viscosity at 60°C | cSt | 30–60 | 70–140 | 250–500 | 3000–6000 | ASTM D2170 |
| Flash Point | °C | — | — | 27 | 27 | ASTM D3143 |
| Water Content (Max) | % Vol | 0.2 | 0.2 | 0.2 | 0.2 | ASTM D95 |
Distillate to 360°C
| Distillation Temperature (°C) | Unit | RC30 | RC70 | RC250 | RC3000 | Test Method |
|---|---|---|---|---|---|---|
| 225 | % Vol | 55 | 50 | 35 | 10 | ASTM D402 |
| 260 | % Vol | 75 | 70 | 60 | 25 | ASTM D402 |
| 315 | % Vol | 90 | 85 | 80 | 70 | ASTM D402 |
| Residue from distillation to 360 | % Vol | 50 | 55 | 65 | 75 | ASTM D402 |
Tests on Residue Bitumen from Distillation
| Characteristic | Unit | RC30 | RC70 | RC250 | RC3000 | Test Method |
|---|---|---|---|---|---|---|
| Penetration @ 25°C | 0.1 mm | 80–120 | 80–120 | 80–120 | 80–120 | ASTM D5 |
| Ductility at 25°C | cm | 100 | 100 | 100 | 100 | ASTM D113 |
| Solubility in TCE | % wt | 99 | 99 | 99 | 99 | ASTM D2040 |
| No. | Property | Unit | Test Method | Result |
|---|---|---|---|---|
| 1 | Penetration | dmm | ASTM D6 | 220 |
| 2 | Kinematic Viscosity at 135°C | °C | ASTM D445 | 200 |
| 3 | Softening Point | °C | ASTM D70 | 37 |
| 4 | Flash Point | °C | ASTM D92 | 215 |
| 5 | Sulphur | Mass % | ASTM D4294 | 5.9 |
| No. | Property | Unit | Test Method | Result |
|---|---|---|---|---|
| 1 | Penetration | dmm | ASTM D6 | 110 |
| 2 | Kinematic Viscosity at 135°C | °C | ASTM D445 | 250 |
| 3 | Softening Point | °C | ASTM D70 | 40 |
| 4 | Flash Point | °C | ASTM D92 | 260 |
| 5 | Sulphur | Mass % | ASTM D4294 | 5.9 |
Guaranty and safety of bitumen penetration 60/70
We, AL JABAL as a top bitumen exporter, guaranty the quality of penetration grade 60/70 with the arrangement of the international inspectors to check quality and quantity of the penetration grade 60/70 during the loading to the vessel and controlling the production by QC by batch test report before shipping. AL JABAL guarantees the quality to meet with the requirement with actual requirement you asked for.
